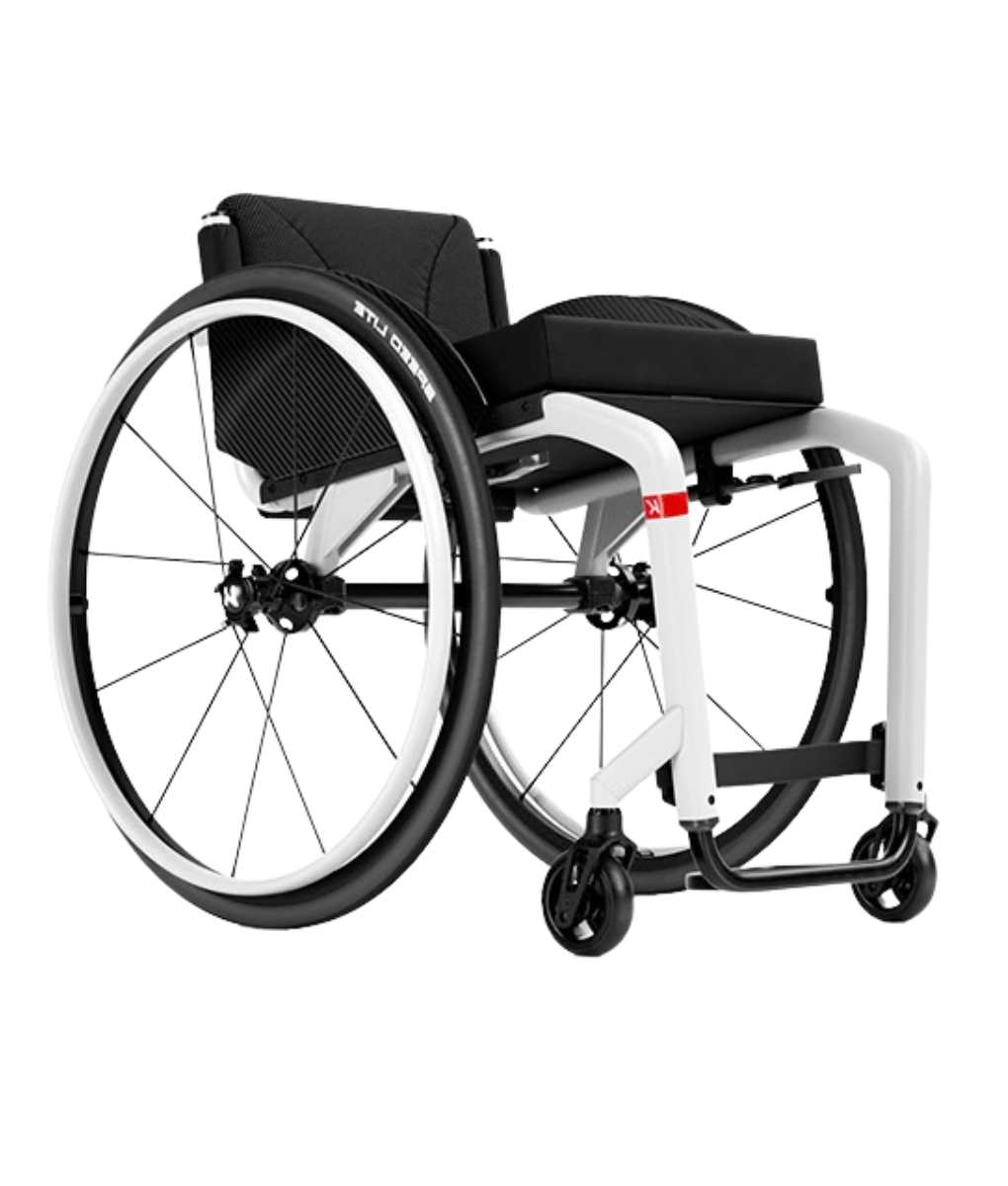

Küschall The KSL Manual Wheelchair
Part no. JOY-WCHR-NDK5Available to order
Price confirmed by our team
Add this to your price request. We confirm suitability and the price for your funding — NDIS, Support at Home or private — and the quote appears in your portal.
Have a question first? or send our team a message.
- Registered NDIS provider — all plan types
- Free home trials on selected equipment
- Delivery and installation Australia-wide
- Questions? Call 0433 797 495 or ask Joy, 24/7
About this product
Premium welded performance with precise fit
Engineered for precise handling, efficient propulsion and uncompromising performance. The Küschall The KSL Manual Wheelchair is Küschall’s lightest rigid wheelchair, designed for experienced and active individuals seeking maximum responsiveness and efficiency. Its precision-built frame delivers exceptional handling while offering a high level of individual configuration.
Specifications
- camber
- 0°, 3° or 6°
- standard
- AS/NZS 3695.1
- warranty
- Frame: 5 Years Components: 2 Years
- base-width
- Seat Width + 170 mm
- rear-wheel
- 24” / 25”
- seat-depth
- 38.5 cm – 48.5 cm (15.2” – 19.1”)
- seat-width
- 34 cm – 44 cm (13.4” – 17.3”)
- base-length
- 75°: approx. 800 mm 90°: approx. 730 mm
- frame-angle
- 75° or 90° (V-frame or tapered)
- front-castor
- 3” / 4” / 5”
- total-weight
- Approx. 6.8 kg
- backrest-angle
- 74°, 78°, 82°, 86°, 90°
- frame-material
- Aluminium
- backrest-height
- 27 cm – 42 cm (10.6” – 16.5”)
- transit-options
- No
- artg-certificate
- 129939
- rear-seat-height
- 40 cm – 48 cm (15.7” – 18.9”)
- centre-of-gravity
- 8 cm, 9.5 cm, 11 cm, 12.5 cm, 14 cm (3.1”, 3.7”, 4.3”, 4.9”, 5.5”)
- front-seat-height
- 45 cm – 53 cm (17.7” – 20.9”)
- safe-working-load-swl
- 100 kg
- compatible-with-power-assist
- Yes
- transport-weight-excl-rear-wheels
- Approx. 4.3 kg
