Molift Quattro Gantry Frame
Price confirmed by our team
Add this to your price request. We confirm suitability and the price for your funding — NDIS, Support at Home or private — and the quote appears in your portal.
Have a question first? or send our team a message.
- Registered NDIS provider — all plan types
- Free home trials on selected equipment
- Delivery and installation Australia-wide
- Questions? Call 0433 797 495 or ask Joy, 24/7
About this product

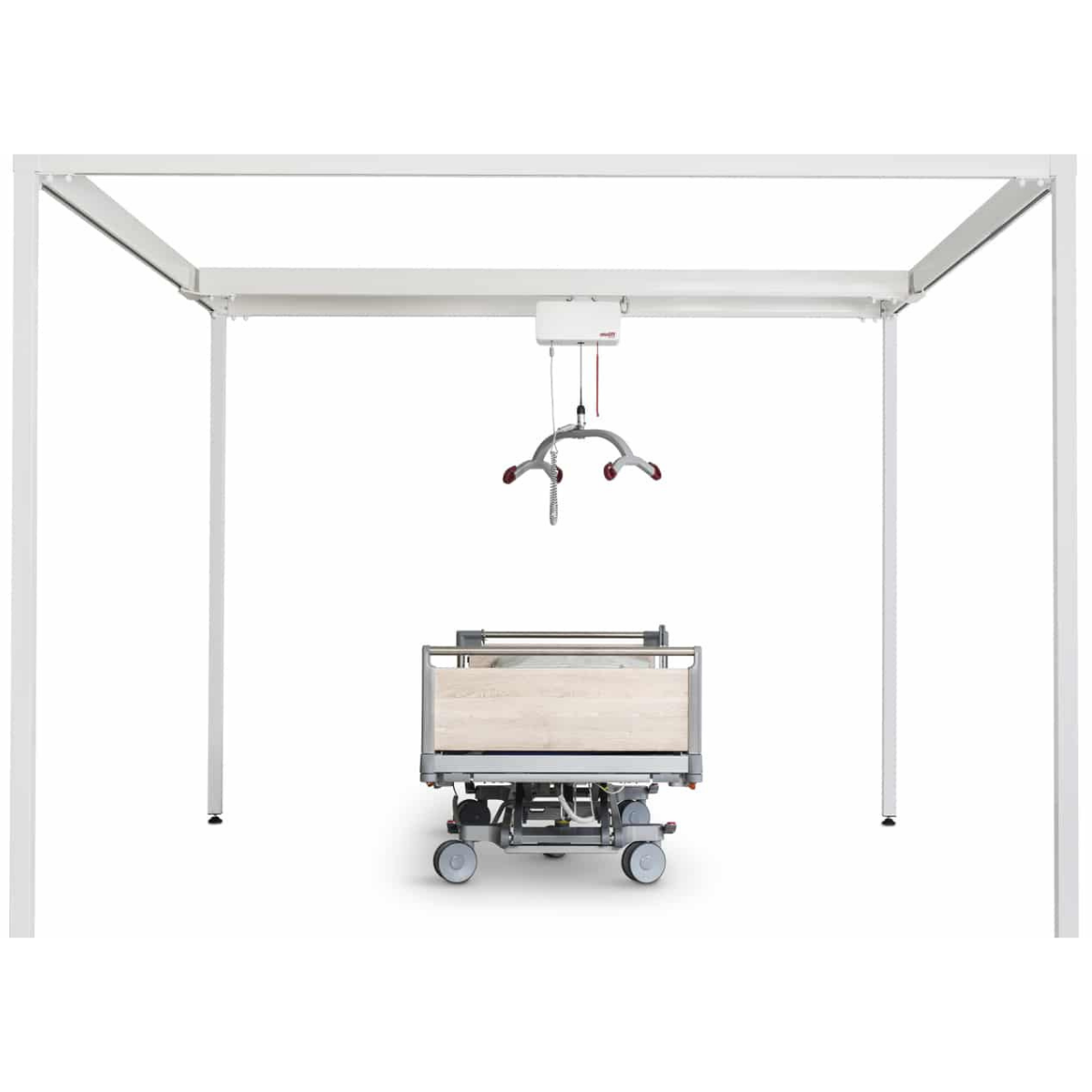

Product Overview The Quattro gantry can be installed easily without any requirement for mounting additional fixtures to walls or ceilings. It is designed to be installed quickly and efficiently with one or two people. The Molift Quattro Gantry Frame is ideally suited to temporary hoist applications, usually within the hospital or aged care environment. The traverse system consists of an aluminium frame and four steel posts which provide excellent stability and cover the surface of the hoisting requirement, providing access in all lifting situations. Combined with the Molift Air or Molift Nomad and fitted with a sling, the Quattro solves all overhead lifting situations.

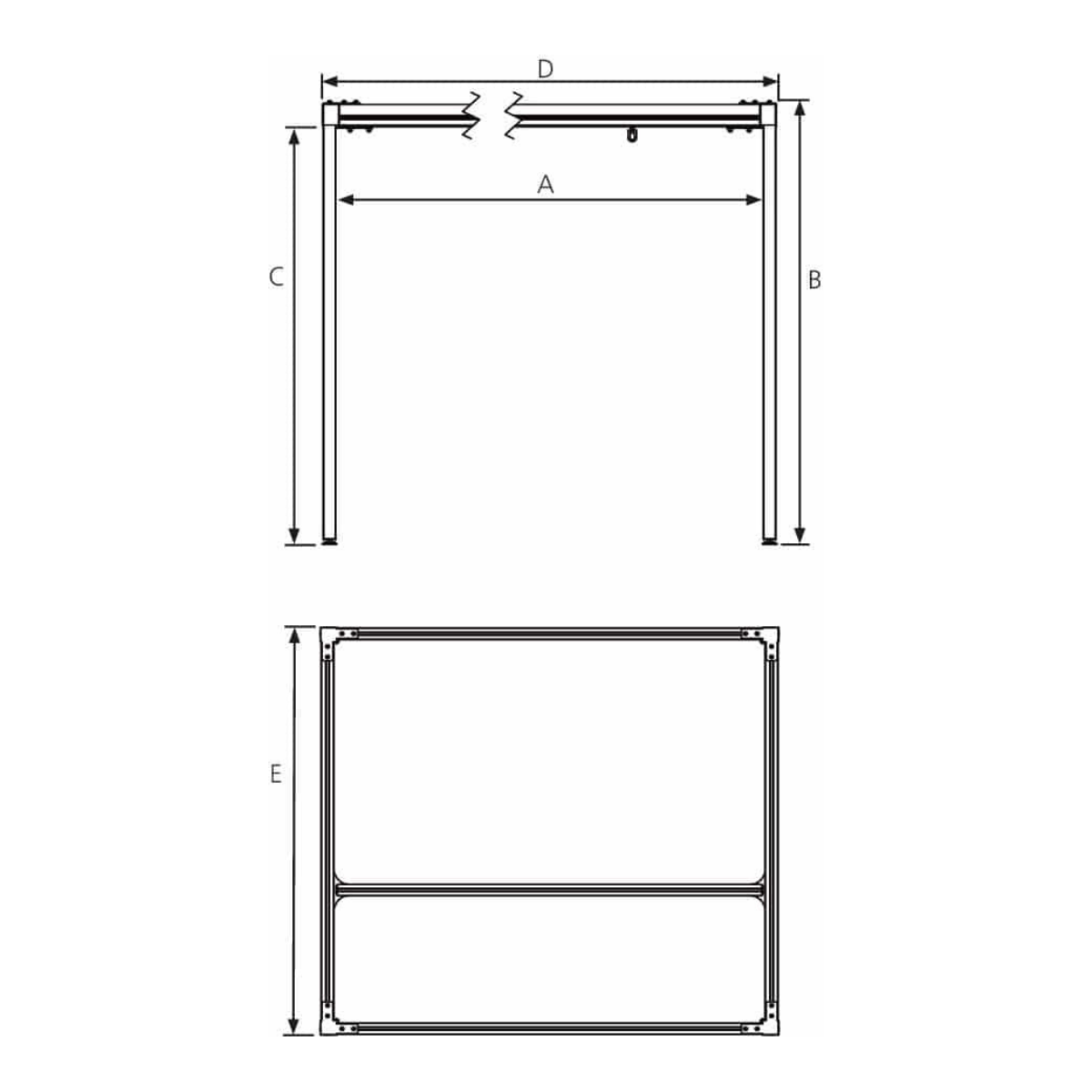

Specifications
- Depth
- 3160 mm; 4160 mm
- Width
- 3160 mm; 4160 mm
- Height
- 2330 mm
- Material
- Steel, anodized aluminum, plastic
- Warranty
- 2 years
- ARTG Number
- 360015
- Rail length
- 3000 mm; 4000 mm
- Unit weight
- 111 kg; 132 kg
- Overall Width
- 120 cm
- Care Instructions
- Clean the product with a solvent-free cleaning agent with a pH level between 5–9, or with a 70% disinfectant solution
- Expected Lifetime
- 10 years
- Safe Working Load
- 255 kg
- Australian Standards
- 10535:2006
- Maximum lifting capacity
- 300 kg

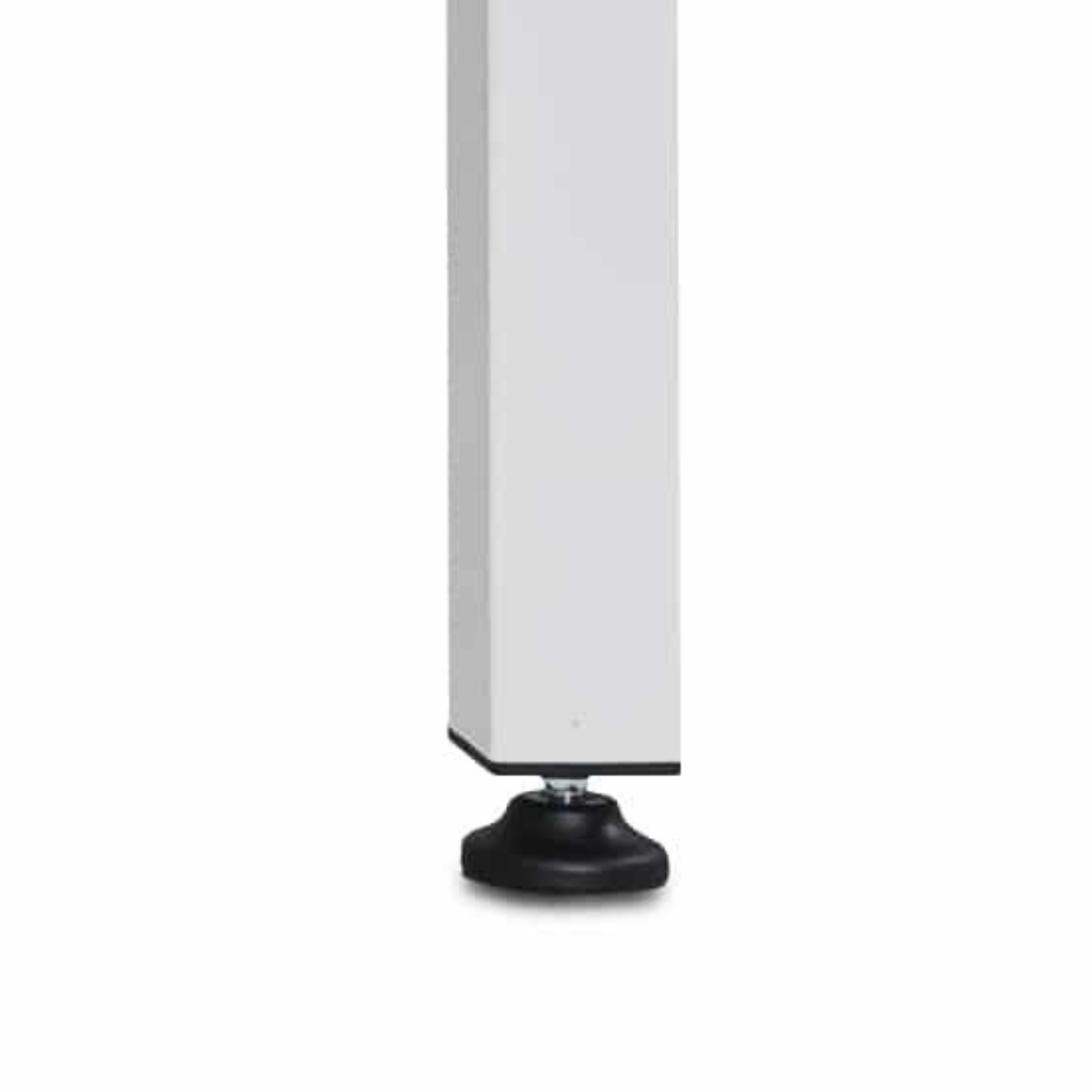

- External height with adjustable feet
- 2290 mm (accessory sold separately)
