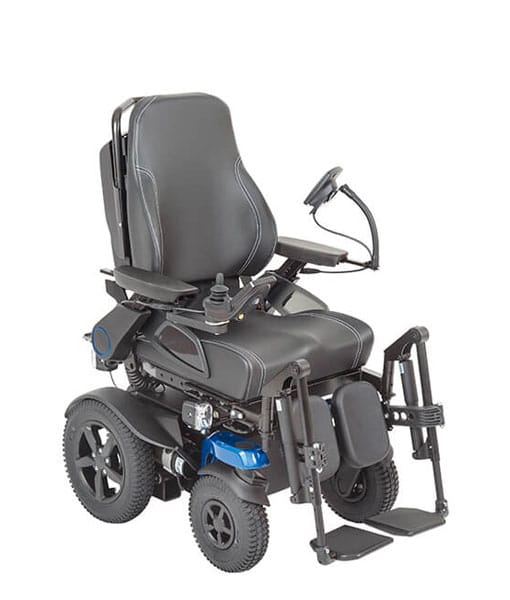

Ottobock B6R Power Chair
Price confirmed by our team
Add this to your price request. We confirm suitability and the price for your funding — NDIS, Support at Home or private — and the quote appears in your portal.
Have a question first? or send our team a message.
- Registered NDIS provider — all plan types
- Free home trials on selected equipment
- Delivery and installation Australia-wide
- Questions? Call 0433 797 495 or ask Joy, 24/7
About this product
Optimised for more flexibility The Bseries power wheelchair has a modular design that offers almost boundless possibilities for assembling custom-made devices for complex requirements. With front-wheel and rear-wheel drive, the specific driving characteristics and motor powers of two kinds of drive in two frame widths are at your disposal. A high degree of flexibility is assured by the new VAS (variably adjustable seat) seat frame solution with Ergo-Joint back angle adjustment as well as innovative special and environmental controls, among other features
Specifications
- range
- (acc. to ISO 7176-4) 35 km
- speeds
- 6 / 7.2 / 10 km/h
- weight
- from 107 kg
- seat-tilt
- 45° power
- back-angle
- 0° to +30°
- seat-depth
- 340–500 mm
- seat-width
- 340–560 mm
- back-height
- 450 / 550 mm
- control-unit
- VR2 or Ottobock TEN°
- overall-width
- Chassis size 1: 600 mm Chassis size 2: 640 mm
- battery-capacity
- 63 Ah (C5) / 74 Ah (C20) gel batteries (standard equipment)
- lower-leg-length
- 250–540 mm
- seat-inclination
- -3° / 0° / 3° / 6°
- max-charging-time
- 12 hours
- max-load-capacity
- Chassis size 1: 140 kg Chassis size 2: 160 kg
- arm-support-height
- 225–350 mm
- climbing-ability-iso-7176-2
- 10° / 17%
- obstacle-negotiation-capability
- Front-wheel drive: 100 mm Rear-wheel drive: 65 mm, optional 100 mm
- seat-height-depending-on-seating-solution
- 400–550 mm
