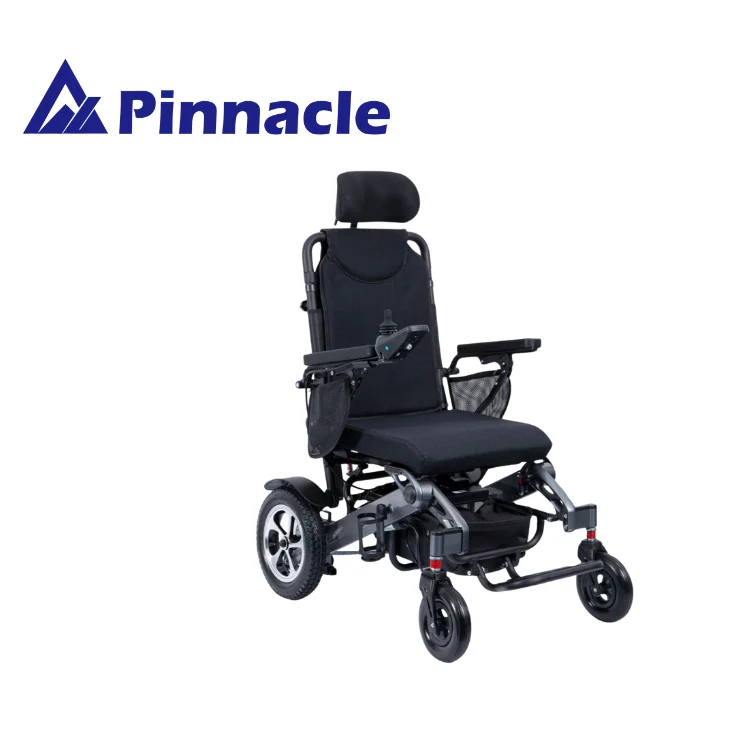

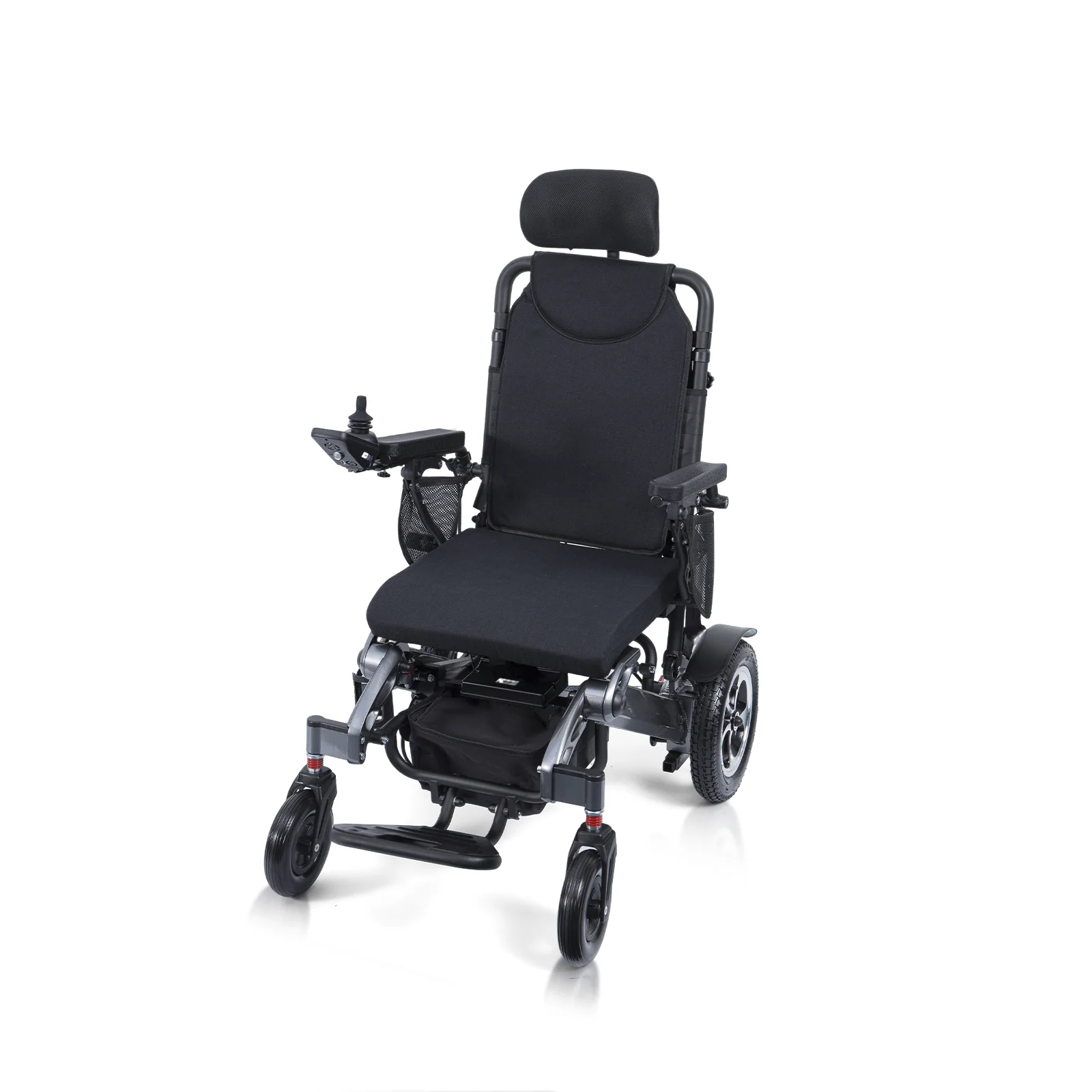

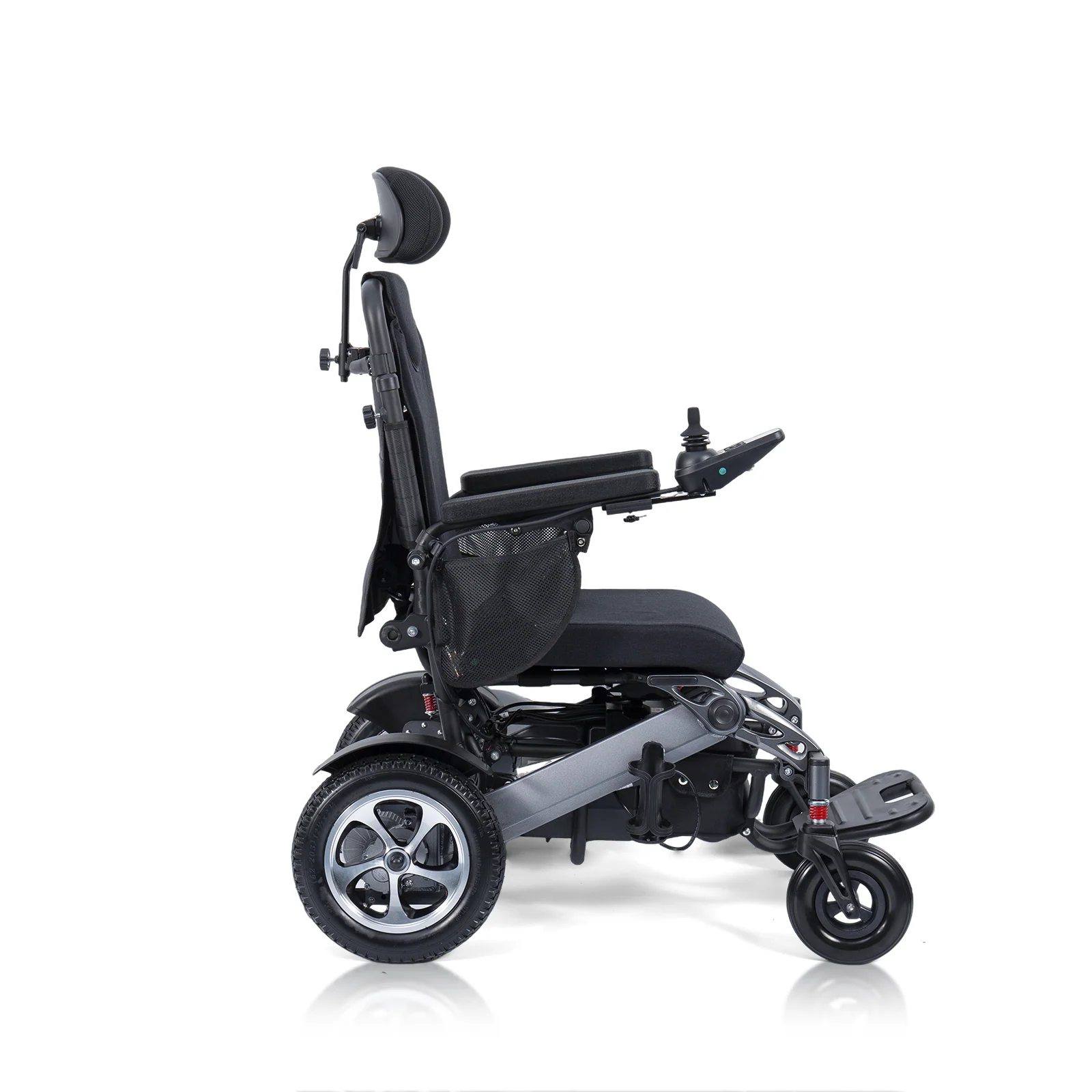

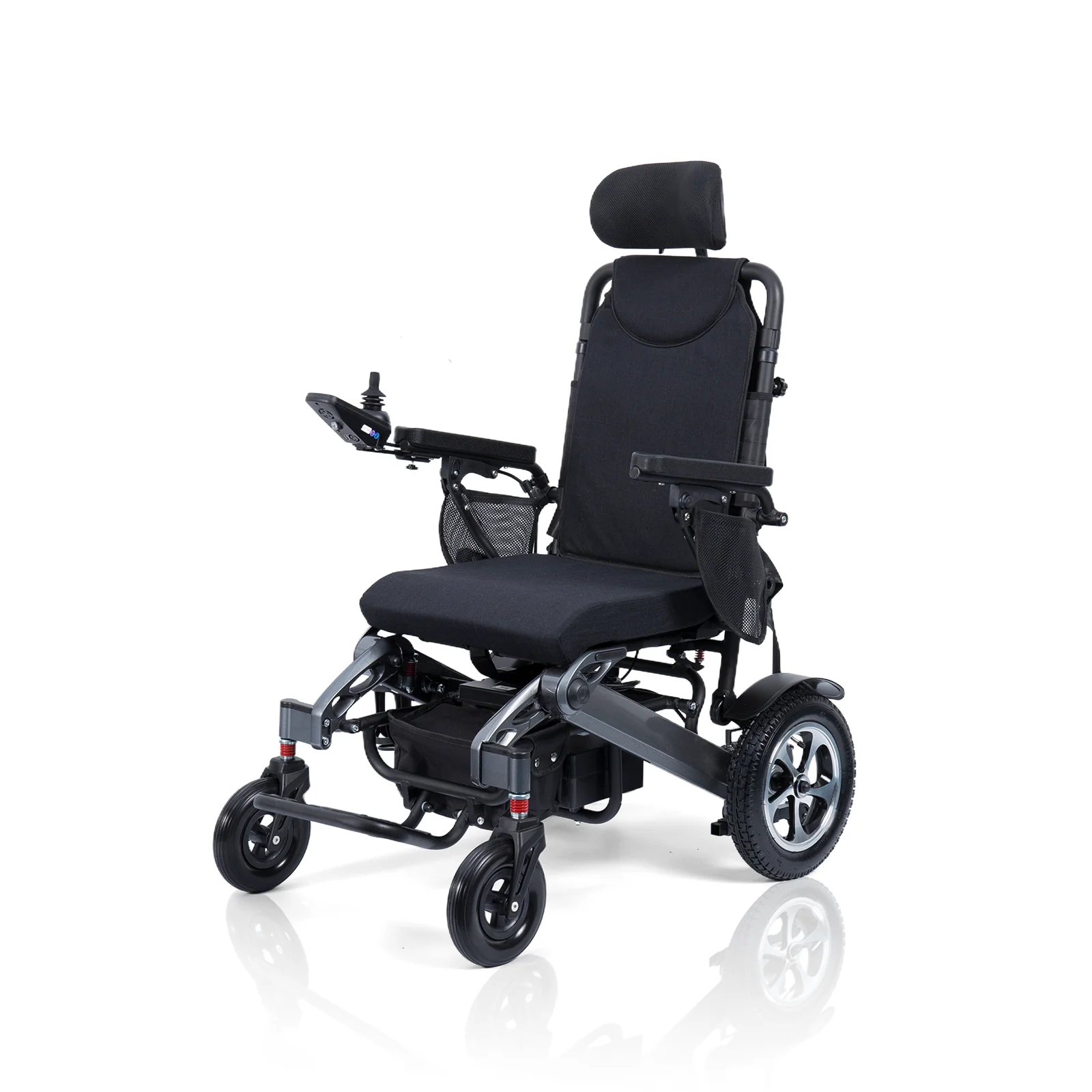

Pinnacle Navigator Max Electric Wheelchair
Price confirmed by our team
Add this to your price request. We confirm suitability and the price for your funding — NDIS, Support at Home or private — and the quote appears in your portal.
Have a question first? or send our team a message.
- Registered NDIS provider — all plan types
- Free home trials on selected equipment
- Delivery and installation Australia-wide
- Questions? Call 0433 797 495 or ask Joy, 24/7
About this product

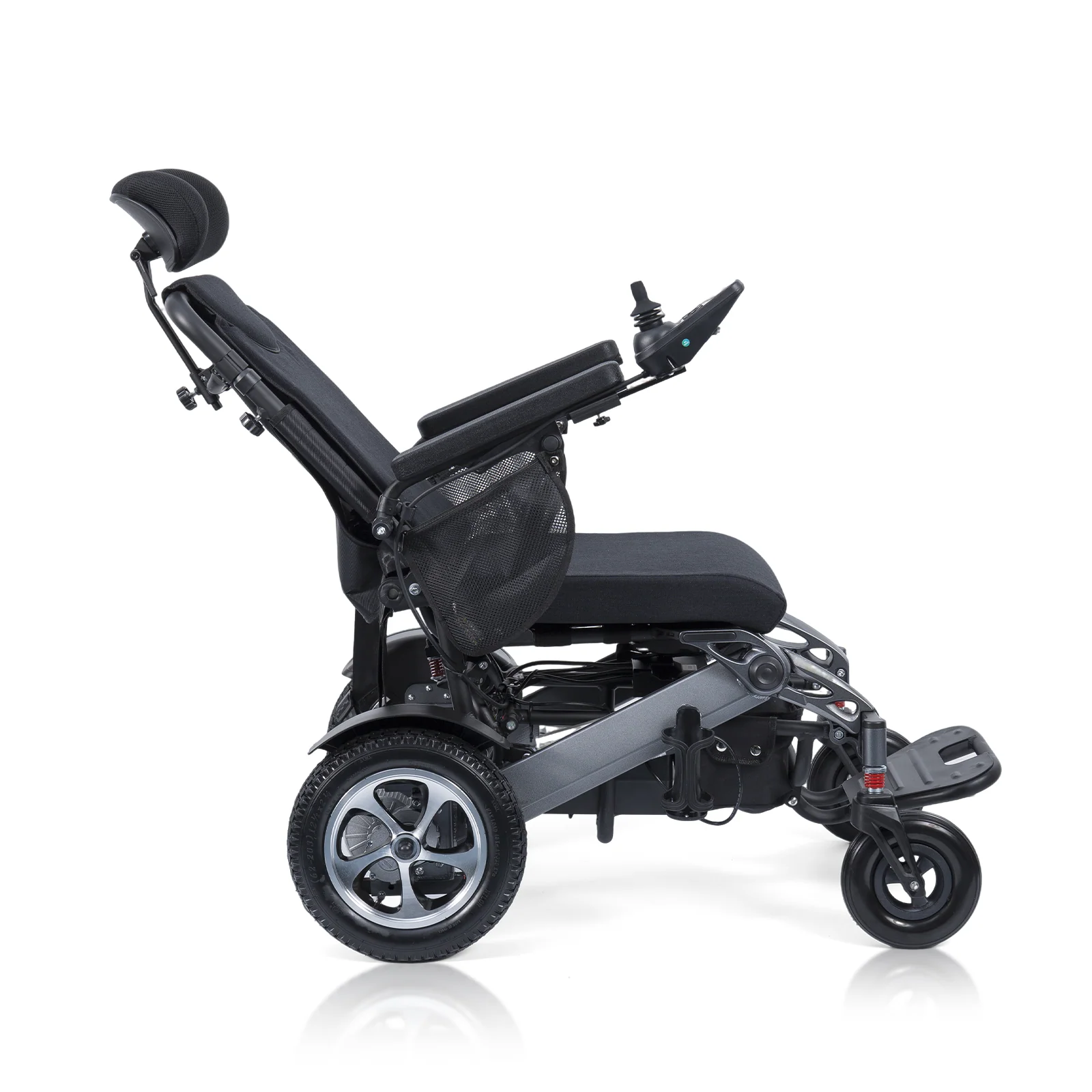

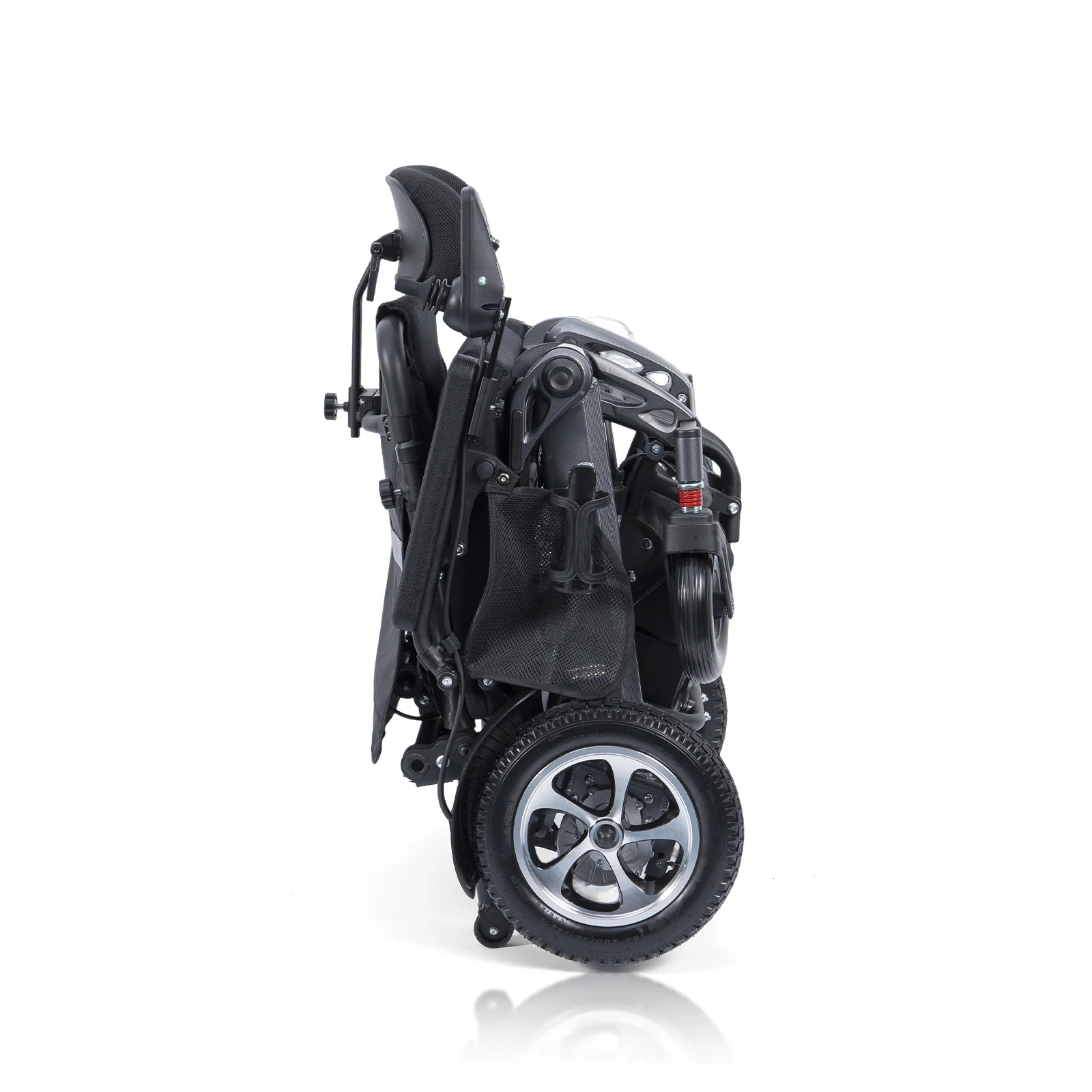

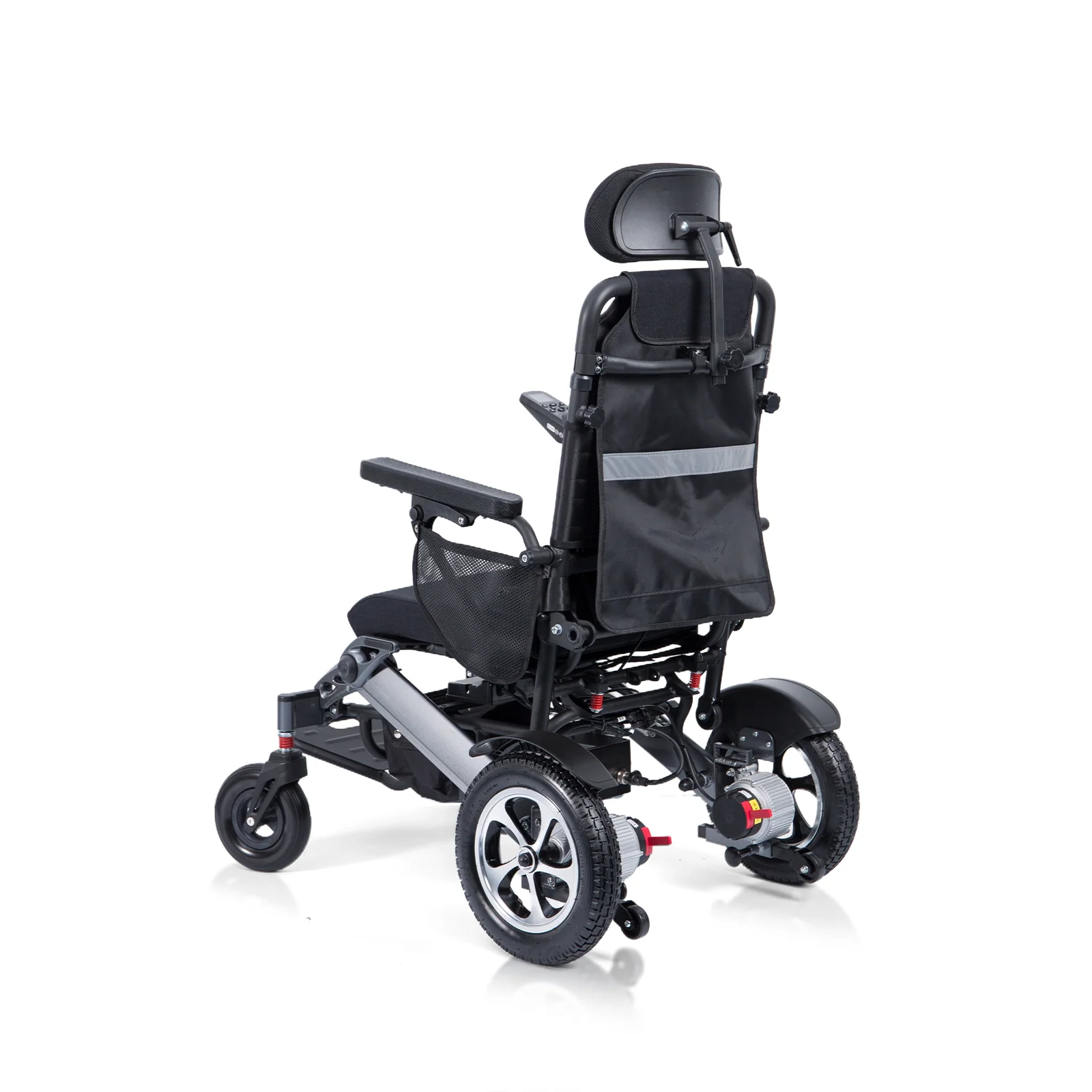

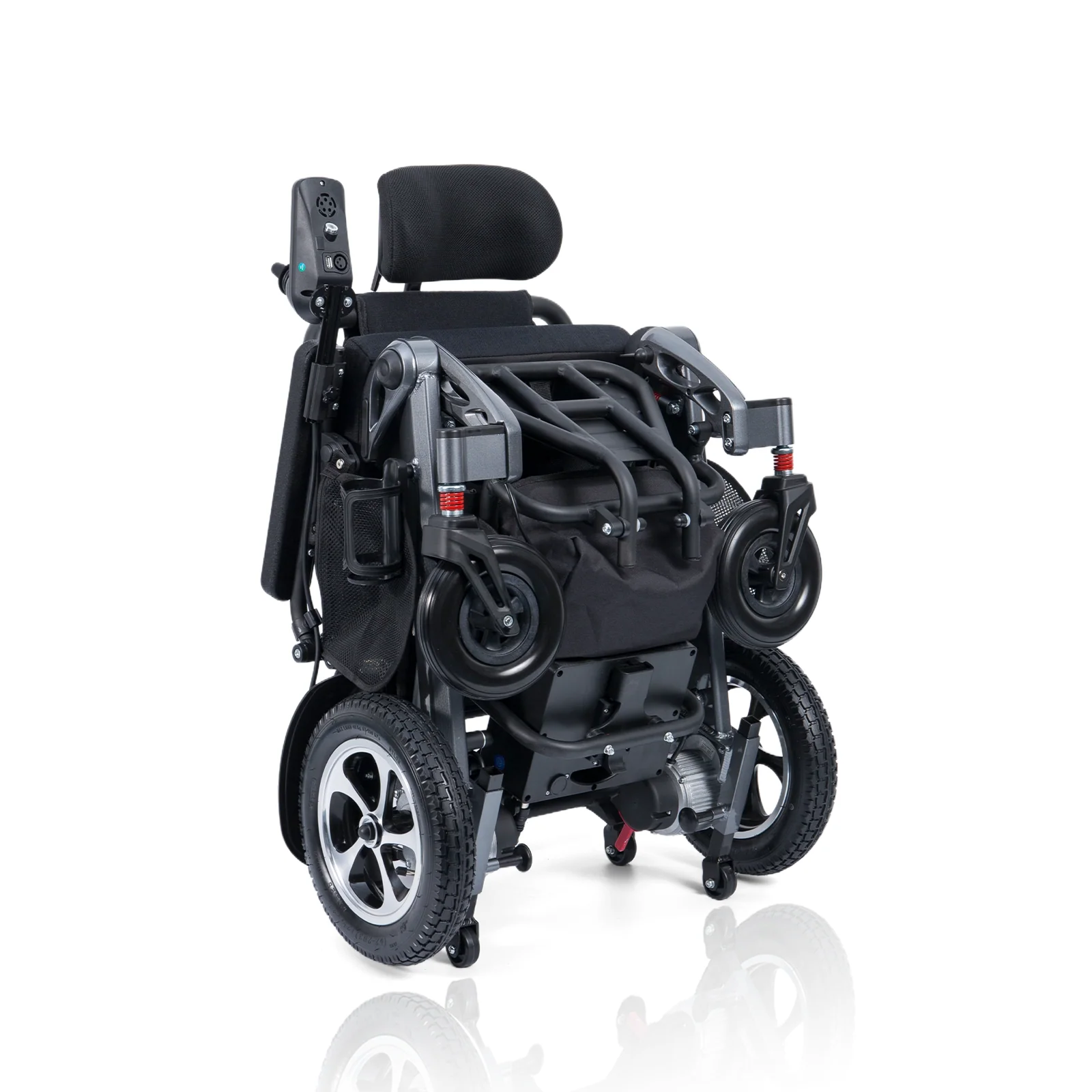

One-Touch Automatic Folding Electric Wheelchair Features Enhanced Comfort – Deeper seat, higher backrest, extra-thick cushion & front wheel suspension One-Touch Automatic Folding – Effortless storage and transport Powerful 250W Brushless Motors – Smooth, quiet, energy-efficient performance Electric Reclining Backrest – Personalised comfort with easy adjustment Remote Control – Wireless attendant controller Practical Design – Flip-up footplate & armrest, generous storage space (4 bags included), safety belt, anti-tippers, headrest Customisable Options – Back & seat rests, footplate, umbrella, light, cup holder, phone holder Specification Specification Details Overall Width 645 mm Overall Length 1020 mm Internal Seat Width 450 mm Internal Seat Depth 480 mm Backrest Height 695 mm Backrest Recline Angle 90°–135° Seat Height 430 mm Caster Size 8″ Front, 12″ Rear Safe Working Load 100 kg Net Weight 34 kg (without battery), 38 kg (with battery) Motor 24 V 250 W Brushless Motor Maximum Speed 6 km/h Driving Range Up to 20 km Static Climbing Capacity 15° Dynamic Climbing Capacity 10°–12° Warranty Frame: 1 Year Motors: 1 Year Controller & CPU System: 1 Year Battery: 1 Year
Specifications
- Motor
- 24 V 250 W Brushless Motor
- Net Weight
- 34 kg (without battery), 38 kg (with battery)
- Caster Size
- 8″ Front, 12″ Rear
- Seat Height
- 430 mm
- Driving Range
- Up to 20 km
- Maximum Speed
- 6 km/h
- Overall Width
- 645 mm
- Specification
- Details
- Overall Length
- 1020 mm
- Backrest Height
- 695 mm
- Safe Working Load
- 100 kg
- Internal Seat Depth
- 480 mm
- Internal Seat Width
- 450 mm
- Backrest Recline Angle
- 90°–135°
- Static Climbing Capacity
- 15°
- Dynamic Climbing Capacity
- 10°–12°
