Quantum Edge 3 Power Wheelchair
Part no. JOY-WCHR-QNE8Available to order
Price confirmed by our team
Add this to your price request. We confirm suitability and the price for your funding — NDIS, Support at Home or private — and the quote appears in your portal.
Have a question first? or send our team a message.
- Registered NDIS provider — all plan types
- Free home trials on selected equipment
- Delivery and installation Australia-wide
- Questions? Call 0433 797 495 or ask Joy, 24/7
About this product
Smooth performance with power elevation

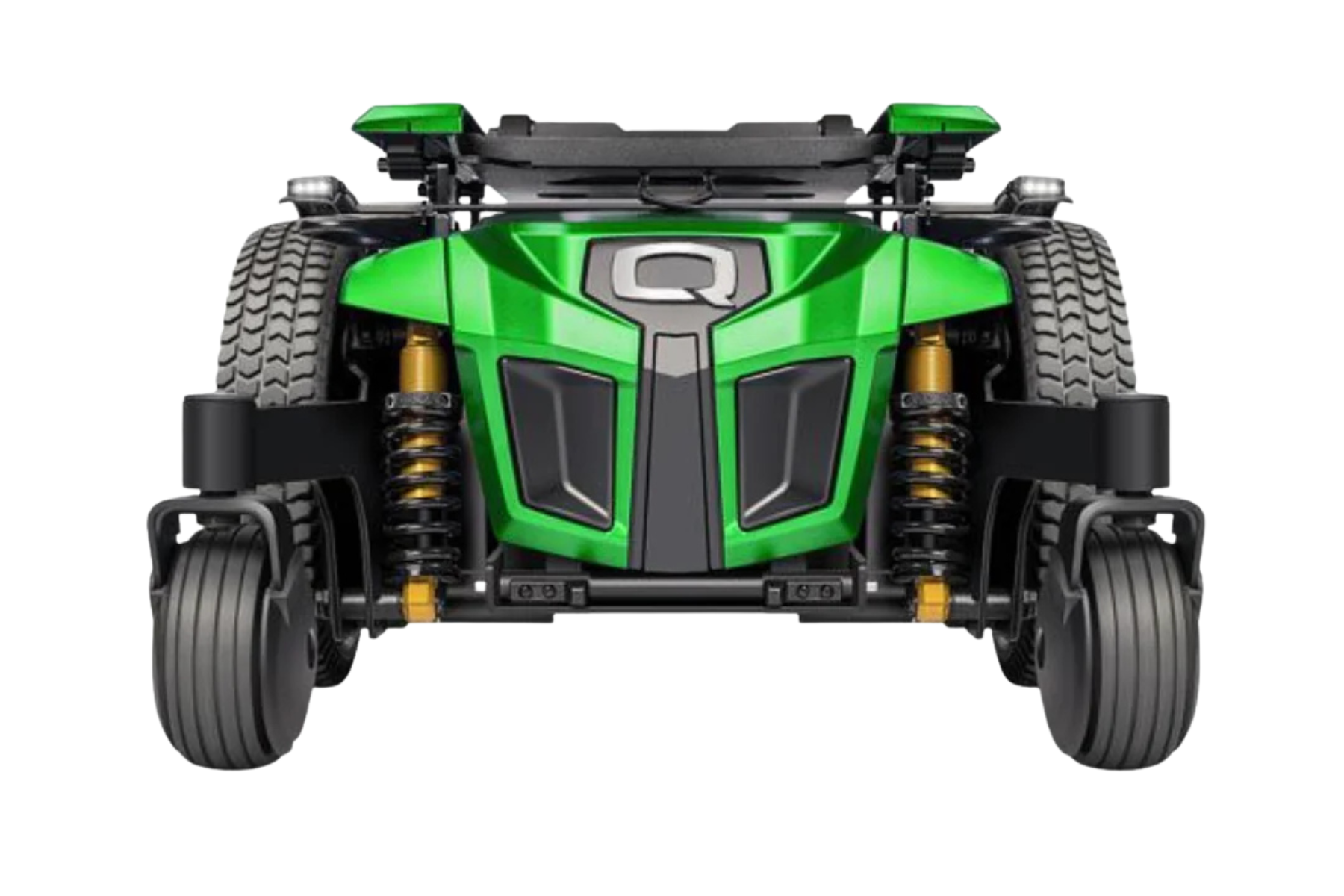

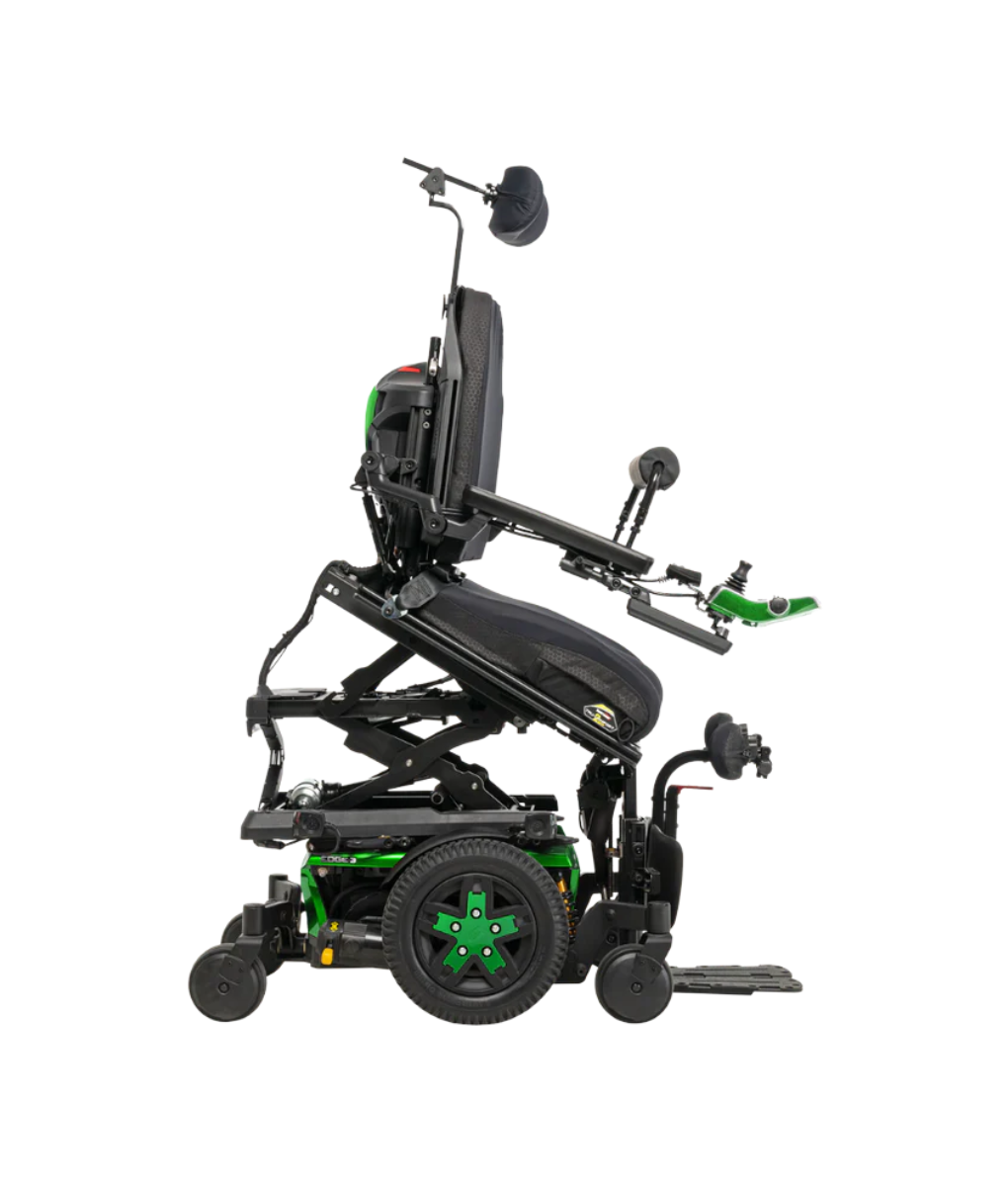

Mid-wheel chair with responsive suspension and powered seat elevation. The Quantum Edge 3 Power Wheelchair combines advanced suspension, smooth handling and iLevel® elevation for everyday performance. With a mid-wheel drive base, bold styling and compatibility with multiple seating systems, the Edge 3 supports complex needs while maintaining comfort and control across environments.
Specifications
- castors
- Front and rear: 15.2 cm (6”) solid
- pa brand
- Quantum
- warranty
- Limited lifetime (frame), 1 year electrics/motors, 6 months bearings/bushings, 12 months battery
- standards
- AS/NZS 3695.2:2019
- base-width
- 61.9 cm (24.4”)
- seat-depth
- Static seat: 25.4 – 55.9 cm (10” – 22”) Power tilt and tilt/lift: 30.5 – 55.9 cm (12” – 22”)
- seat-width
- Static seat: 25.4 – 55.9 cm (10” – 22”) Power tilt and tilt/lift: 30.5 – 55.9 cm (12” – 22”)
- base-length
- 90 cm (35.5”) without front riggings
- drive-wheel
- 35.5 cm (14”) pneumatic or flat free tyres
- tilt-option
- TRU-Balance® 3 or 4 Tilt – included
- battery-type
- MK 50AH (x2)
- maximum-speed
- Up to 10 km/h (7.24 km/h with iLevel®)
- recline-option
- Available via TRU-Balance® systems
- artg-certificate
- 109840
- ground-clearance
- 6.8 cm (2.7”) at battery tray
- drive-electronics
- 120A Q-Logic 3, NES or NE+
- manufacturer code
- Quantum
- seat-to-floor-height
- Static seat: 41.9 – 47 cm (16.5” – 18.5”) Power tilt: 44.5 – 49.5 cm (17.5” – 19.5”) Lift and tilt: 44.5 – 49.5 cm (17.5” – 19.5”)
- safe-working-load-swl
- 136 kg
- seat-elevation-option
- 30.5 cm (12”)
- minimum-turning-radius
- 52 cm (20.5”)
- legrest-elevation-option
- Available via articulating foot platform
- weight-including-batteries
- 193 kg
- pa drive-wheel-configuration
- Mid Wheel Drive
