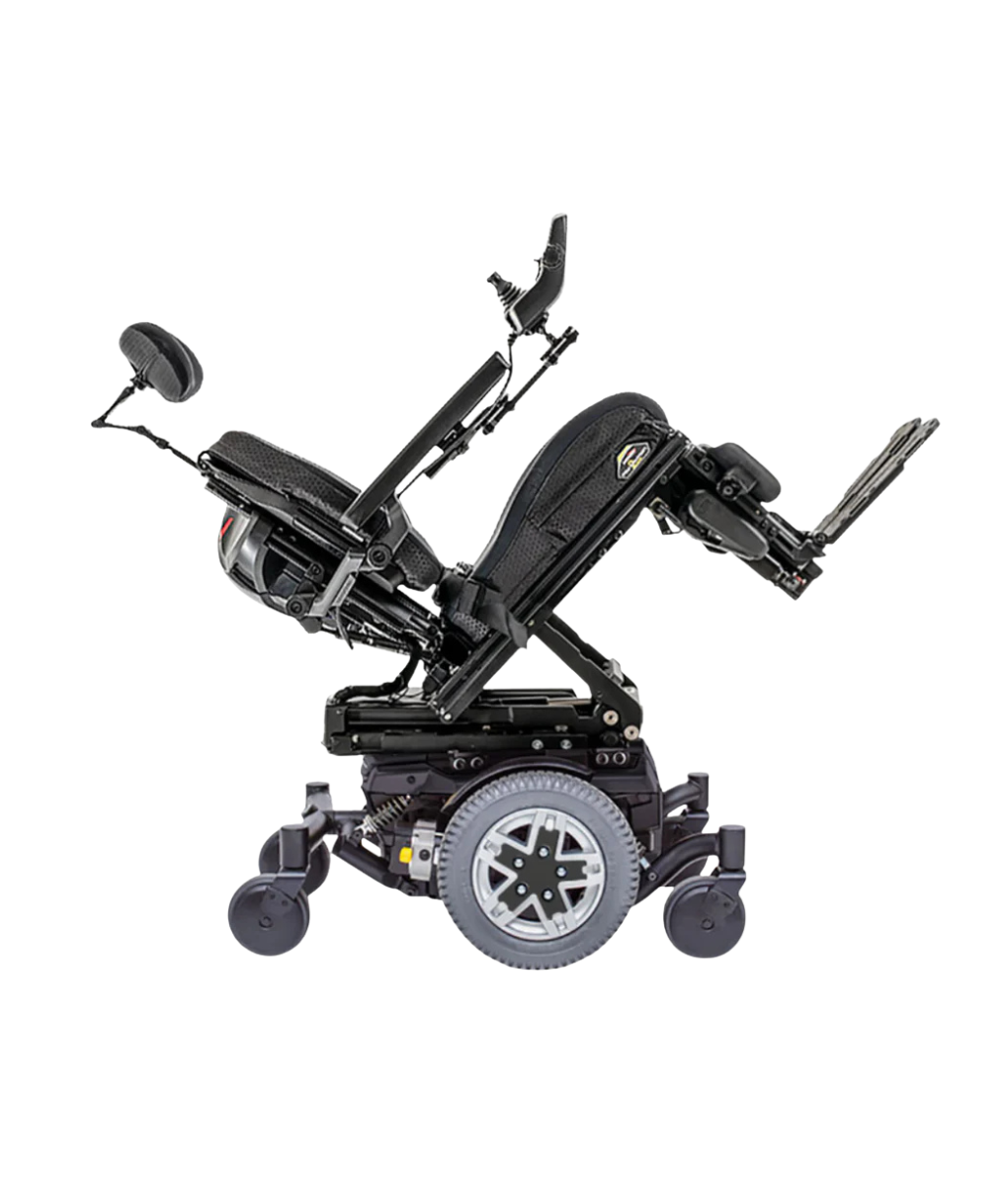

Quantum Q6 Edge Z Power Wheelchair
Part no. JOY-WCHR-QN16Available to order
Price confirmed by our team
Add this to your price request. We confirm suitability and the price for your funding — NDIS, Support at Home or private — and the quote appears in your portal.
Have a question first? or send our team a message.
- Registered NDIS provider — all plan types
- Free home trials on selected equipment
- Delivery and installation Australia-wide
- Questions? Call 0433 797 495 or ask Joy, 24/7
About this product

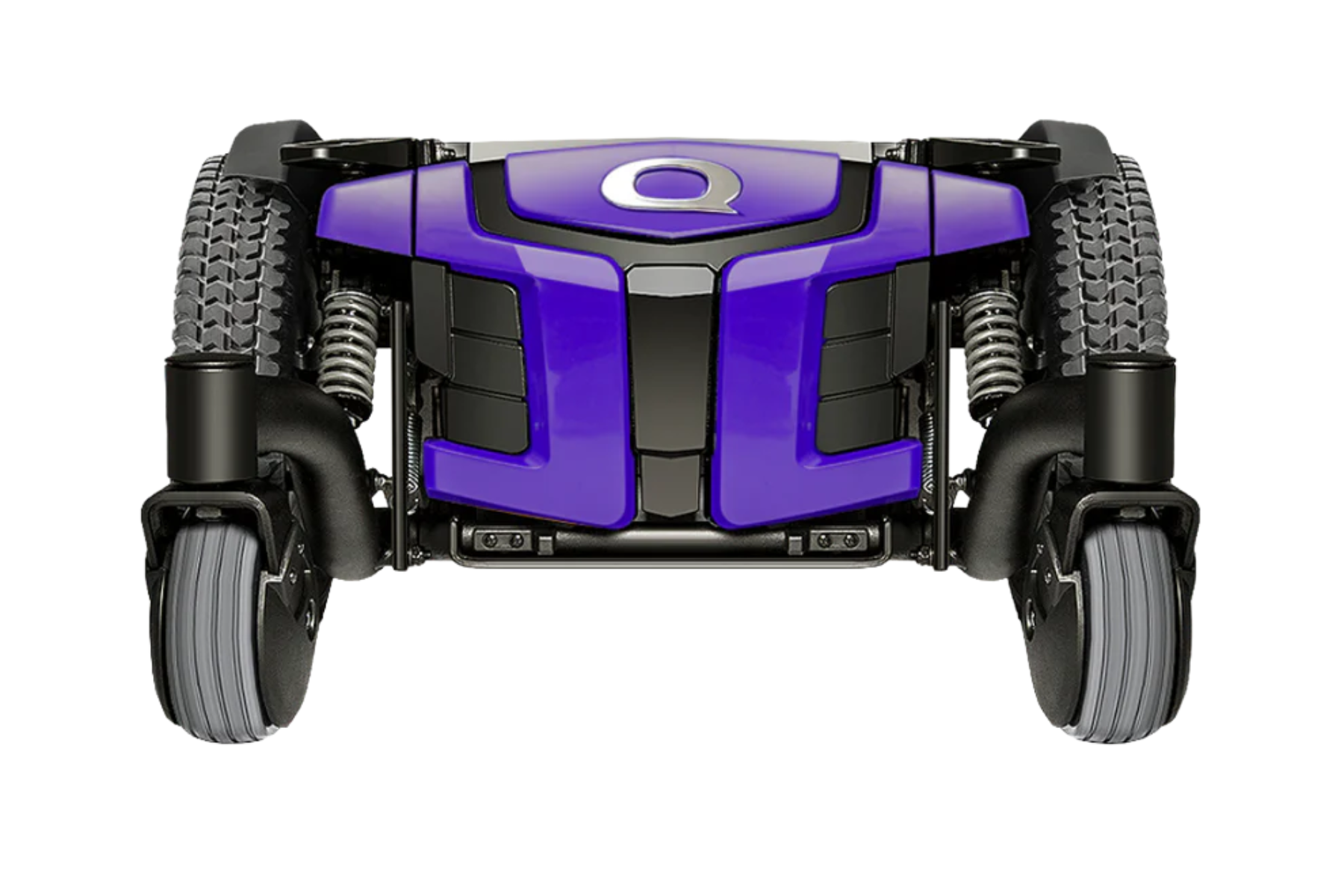

High torque mid wheel drive for outdoor control
Designed for powerful performance, stability and confident outdoor mobility. The Quantum Q6 Edge Z Power Wheelchair is a robust mid‑wheel drive chair built for high torque and dependable outdoor performance. With a stable wide base, ATX suspension and optional iLevel® seat elevation, the Edge Z supports confident mobility across varied environments.
Specifications
- castors
- Front: 15.2 cm (6”) solid, rear: 15.2 cm (6”) solid
- pa brand
- Quantum
- warranty
- Limited lifetime (frame), 1 year electrics/motors, 6 months bearings/bushings, 12 months battery
- standards
- AS/NZS 3695.2:2019
- base-width
- 66.5 cm (26”)
- seat-depth
- With power functions: 35.5 – 61 cm (14” – 24”)
- seat-width
- With power functions: 30.5 – 61 cm (12” – 24”)
- base-length
- 90.4 cm (36”)
- drive-wheel
- 35.5 cm (14”) pneumatic or flat free
- tilt-option
- Available via compatible seating systems
- battery-type
- MK 70 AH (x2)
- maximum-speed
- Up to 10 km/h (5.6 km/h with iLevel®)
- recline-option
- Available
- artg-certificate
- 109840
- ground-clearance
- 7.6 cm (3”) at battery tray
- drive-electronics
- Q-Logic 3
- manufacturer code
- Quantum
- seat-to-floor-height
- Power tilt: 46 – 51 cm (18.1” – 20.1”) Lift and tilt: 49 – 54 cm (19.3” – 21.3”)
- safe-working-load-swl
- 160 kg
- seat-elevation-option
- 30.5 cm (12”)
- minimum-turning-radius
- 50.0 cm (20”)
- legrest-elevation-option
- Available
- weight-including-batteries
- 200 kg
- pa drive-wheel-configuration
- Mid Wheel Drive
